Chronos 1.4
Chronos 2.1-HD
Chronos 4K12 NEW
Chronos Q12 NEW

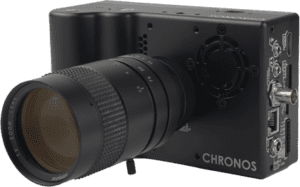

Chronos 1.4
From $4,500
Chronos 2.1-HD
From $6,800

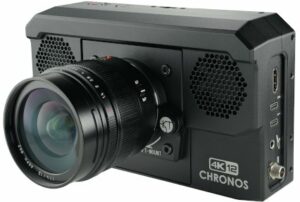

Chronos 4K12 NEW
From $14,495
Chronos Q12 NEW
From $19,995
Overview |
||||||||
|
Maximum Resolution |
1280 x 1024 at 1,069 FPS |
1920 x 1080 (HD) at 1,000 FPS |
4096 x 2160 (4K) at 1,397 FPS |
2048 x 2016 at 2,782 FPS |
||||
|
Minimum Resolution |
320 x 96 at 40,413 FPS |
640 x 96 at 24,046 FPS |
128 x 32 at 29,002 FPS |
128 x 32 at 29,411 FPS |
||||
|
Throughput |
1.4 Gigapixels per second |
2.1 Gigapixels per second |
11.8 Gigapixels per second |
11.8 Gigapixels per second |
||||
|
Memory Options |
8 GB, 16 GB, 32 GB | 8 GB, 16 GB, 32 GB | 64 GB, 128 GB | 64 GB, 128 GB | ||||
|
Record Time at Max Resolution |
4s (8GB), 8s (16GB), 16s (32GB) |
2.7s (8GB), 5.5s (16GB), 11s (32GB) |
5.5s (64GB), 11s (128GB) |
5.9s (64GB), 11.8s (128GB) |
||||
|
Save Formats Uncompressed |
CinemaDNG Raw, TIFF Raw |
CinemaDNG Raw, TIFF Raw |
CinemaDNG Raw | CinemaDNG Raw | ||||
|
Save Formats Compressed |
H.264/AVC MPEG-4 File Format |
H.264/AVC MPEG-4 File Format |
H.264/AVC & H.265/HEVC MPEG-4 File Format |
H.264/AVC & H.265/HEVC MPEG-4 File Format |
||||
|
Built-In Storage |
- | - | 1 TB NVMe SSD | 1 TB NVMe SSD | ||||
|
Built-In Touchscreen |
5" 800x480 High Brightness LCD |
5" 800x480 High Brightness LCD |
5" 800x480 High Brightness LCD |
5" 800x480 High Brightness LCD |
||||
|
Built-In Battery |
Removable, 1.5 Hour Runtime |
Removable, 1.5 Hour Runtime |
- | - | ||||
|
Power Input |
17-20 Volts DC 40W |
17-20 Volts DC 40W |
12-24 Volts DC 60W |
12-24 Volts DC 60W |
||||
|
Size & Weight (Without Lens) |
Handheld 1.06 kg (2.34 lbs) |
Handheld 1.06 kg (2.34 lbs) |
Handheld 1.32 kg (2.91 lbs) |
Handheld 1.32 kg (2.91 lbs) |
||||
Image Sensor |
||||||||
|
Format |
2/3" | 4/3" | 4/3" | S35 | ||||
|
Pixel Size |
6.6μm | 10μm | 4.5μm | 9μm | ||||
|
Diagonal |
10.8mm | 22.0mm | 22.9mm | 25.86mm | ||||
|
Active Area |
8.45mm x 6.76mm | 19.20mm x 10.80mm | 20.74mm x 9.79mm | 18.44mm x 18.14mm | ||||
|
Crop Factor |
3.9 | 2 | 2 | 1.6 | ||||
|
Sensitivity (ISO) Color Sensors |
320 - 5120 | 500 - 8000 | 100, 150, 200, 400 | 200, 280, 400, 600 | ||||
|
Sensitivity (ISO) Mono Sensors |
740 - 11840 | 1000 - 16000 | 200, 300, 400, 800 | 400, 560, 800, 1200 | ||||
|
Shutter Type |
Global Electronic | Global Electronic | Global Electronic | Global Electronic | ||||
|
Shutter Duration |
1/FPS to 1μs (1/1,000,000s) |
1/FPS to 10μs (1/100,000s) |
1/FPS to 1μs (1/1,000,000s) |
1/FPS to 4μs (1/250,000s) |
||||
|
Dynamic Range |
9.4 stops (56.7 dB) |
10.3 stops (62.4 dB) |
11.3 stops (68 dB) |
11.3 stops (68 dB) |
||||
|
Bit Depth |
12-bit | 12-bit | 8-bit, 10-bit, 12-bit | 8-bit, 12-bit | ||||
|
Crop Factor at 1920 x 1080 (HD |
- | 2 | 4.4 | 2.2 | ||||
|
Black Calibration Method |
Manual | Manual | Automatic | Automatic | ||||
Lens Mounts |
||||||||
|
Standards Lens Mount |
CS/C Mount | CS/C Mount | Universal Plate | Universal Plate | ||||
|
User-Installable Mount Plates |
MFT-Mount | MFT-Mount |
C-Mount, E-Mount, F-Mount, EF-Mount, MFT-Mount |
C-Mount, E-Mount, F-Mount, EF-Mount, MFT-Mount |
||||
|
Electronic Lens Control |
- | - | - | - | ||||
|
Backfocus Adjustment |
Adjustable, Locking Ring |
Adjustable, Locking Ring |
Adjustable, Shim Kit |
Adjustable, Shim Kit |
||||
|
Infrared Filter |
Removable - 650nm | Removable - 650nm | Removable - 650nm | Removable - 650nm | ||||
Recording |
||||||||
|
Frame Buffer (RAM) |
8 GB, 16 GB, 32 GB | 8 GB, 16 GB, 32 GB | 64 GB, 128 GB | 64 GB, 128 GB | ||||
|
Simultaneous 60 FPS Recording |
 |
|
|
|
||||
Assistive & Video Processing Features |
||||||||
|
Focus Aid / |
|
|
|
|
||||
|
Over-Exposure |
|
|
|
|
||||
|
1:1 Viewfinder |
|
|
|
|
||||
|
Histogram |
- | - |
|
|
||||
|
Gain |
|
|
|
|
||||
|
Color |
|
|
|
|
||||
|
Color |
|
|
|
|
||||
|
Text |
|
|
|
|
||||
|
Calibrated |
- | - |
|
|
||||
Playback & Saving |
||||||||
|
Built-In |
- | - | 1 TB NVMe SSD | 1 TB NVMe SSD | ||||
|
Save to |
|
|
|
|
||||
|
Save to |
|
|
|
|
||||
|
On-Camera |
Play / Pause / Mark-Start / Mark-End |
Play / Pause / Mark-Start / Mark-End |
Play / Pause / Mark-Start / Mark-End |
Play / Pause / Mark-Start / Mark-End |
||||
|
On-Camera |
|
|
|
|
||||
|
Play Footage |
- | - |
|
|
||||
Connectivity |
||||||||
|
USB Port 1 |
Type-A (USB 2.0, 480 Mbps) |
Type-A (USB 2.0, 480 Mbps) |
Type-C (USB 3.2 Gen 1, 5 Gbps) |
Type-C (USB 3.2 Gen 1, 5 Gbps) |
||||
|
USB Port 1 - |
Peripheral Connections (SSD, etc.) |
Peripheral Connections (SSD, etc.) |
PC Connection or Peripheral Connections |
PC Connection or Peripheral Connections |
||||
|
USB Port 2 |
Micro-B (USB 2.0, 480 Mbps) |
Micro-B (USB 2.0, 480 Mbps) |
Type-C (USB 3.2 Gen 2x2, 20 Gbps) |
Type-C (USB 3.2 Gen 2x2, 20 Gbps) |
||||
|
USB Port 2 - Supported Modes |
PC Connection | PC Connection |
Peripheral Connections (SSD, etc.) |
Peripheral Connections (SSD, etc.) |
||||
|
eSATA |
|
|
- | - | ||||
|
SD Card |
|
|
|
|
||||
|
Gigabit |
|
|
via USB-C Adapter | via USB-C Adapter | ||||
|
Wireless |
- | - | via USB-C Adapter | via USB-C Adapter | ||||
|
HDMI |
720p or 1080p at 60 FPS |
720p or 1080p at 60 FPS |
1080p at
60 FPS or 4K at 30 FPS |
1080p at
60 FPS or 4K at 30 FPS |
||||
Triggering & Synchronization |
||||||||
|
Trigger Input/ |
3 | 3 | 3 | 3 | ||||
|
Trigger |
1x BNC + 2x Terminal Block |
1x BNC + 2x Terminal Block |
4-pin 3.5mm TRRS Connector |
4-pin 3.5mm TRRS Connector |
||||
|
Multiple |
|
|
|
|
||||
Power |
||||||||
|
Built-In Battery |
|
|
- | - | ||||
|
Battery Type |
EN-EL4a | EN-EL4a | - | - | ||||
|
Runtime |
1.5 Hours | 1.5 Hours | - | - | ||||
|
Charge Time |
2 Hours (0-80%) with in-camera charger |
2 Hours (0-80%) with in-camera charger |
- | - | ||||
|
Power |
Locking Barrel Jack, 5.5mm x 2.5mm |
Locking Barrel Jack, 5.5mm x 2.5mm |
Locking Barrel Jack, 5.5mm x 2.5mm |
Locking Barrel Jack, 5.5mm x 2.5mm |
||||
|
Input Voltage |
17-20 Volts DC | 17-20 Volts DC | 12-24 Volts DC | 12-24 Volts DC | ||||
|
Typical Power |
40 Watts | 40 Watts | 60 Watts | 60 Watts | ||||
|
D-Tap |
- | - |
|
|
||||
Mechanical & Environmental |
||||||||
|
Enclosure |
Anodized Aluminum | Anodized Aluminum | Anodized Aluminum | Anodized Aluminum | ||||
|
Cooling
|
Single Fan | Single Fan | Dual Fan | Dual Fan | ||||
|
Dimensions |
155mm x 96mm x 67.3mm |
155mm x 96mm x 67.3mm |
188mm x 111mm x 53mm |
188mm x 111mm x 53mm |
||||
|
Dimensions |
6.11" x 3.78" x 2.65" | 6.11" x 3.78" x 2.65" | 7.40" x 4.37" x 2.08" | 7.40" x 4.37" x 2.08" | ||||
|
Weight |
1.06 kg (2.34 lbs) | 1.06 kg (2.34 lbs) | 1.32 kg (2.91 lbs) | 1.32 kg (2.91 lbs) | ||||
|
Operating |
-20 °C to +40 °C (-4 °F to +104 °F) |
-20 °C to +40 °C (-4 °F to +104 °F) |
0 °C to +40 °C (32 °F to +104 °F) |
0 °C to +40 °C (32 °F to +104 °F) |
||||
Software & Remote Control |
||||||||
|
REST API |
|
|
|
|
||||
|
Network Video |
|
|
|
|
||||
|
Control via |
|
|
|
|
||||
|
Control via |
Coming Soon | Coming Soon | Coming Soon | Coming Soon | ||||
Warranty & Support |
||||||||
|
Standard |
1 Year | 1 Year | 1 Year | 1 Year | ||||
|
Extended |
1 Year Extension | 1 Year Extension | 1 or 2 Year Extension | 1 or 2 Year Extension | ||||
|
User |
Paper, Online PDF | Paper, Online PDF | Paper, Online PDF |
Interactive Online Knowledgebase |
||||
|
Email |
|
|
|
|
||||
|
Telephone |
|
|
|
|
||||
Resolution And Frame Rate Chart
CHRONOS
1.4
CHRONOS
2.1-HD
CHRONOS 4K12 New
CHRONOS Q12 New
Bit Depth
12-bit (68.7 Billion Colors)
12-bit (68.7 Billion Colors)
8-bit (16.7 Million Colors)
10-bit (1.07 Billion Colors)
12-bit (68.7 Billion Colors)
8-bit (16.7 million Colors)
12-bit (68.7 Billion Colors)
4096 x 2160 4K
-
-
1,397 FPS
1,006 FPS
481 FPS
-
-
3840 x 2160
UHD
-
-
1,491 FPS
1,006 FPS
481 FPS
-
-
2048 x 2016
2K
-
-
2,065 FPS
1,082 FPS
518 FPS
2,782 FPS
975 FPS
1920 x 1080
HD
-
1,000 FPS
3,651 FPS
1,947 FPS
942 FPS
4,936 FPS
1,731 FPS
1280 x 1024
1,069 FPS
1,512 FPS
3,856 FPS
2,060 FPS
998 FPS
6,534 FPS
1,829 FPS
1280 x 720
1,519 FPS
2,142 FPS
5,153 FPS
2,793 FPS
1,366 FPS
8,840 FPS
2,453 FPS
800 x 600
2,871 FPS
4,352 FPS
6,059 FPS
3,316 FPS
1,633 FPS
9,697 FPS
2,891 FPS
320 x 240
16,682 FPS
-
11,729 FPS
6,847 FPS
3,533 FPS
16,425 FPS
5,682 FPS
1280 x 96
11,784 FPS
14,825 FPS
20,413 FPS
13,268 FPS
7,495 FPS
23,992 FPS
10,123 FPS
320 x 96
40,413 FPS
-
20,413 FPS
13,268 FPS
7,495 FPS
23,992 FPS
10,123 FPS
128 x 32
-
-
29,002 FPS
21,231 FPS
13,590 FPS
29,411 FPS
14,727 FPS
Chronos 1.4
Bit Depth
12-bit (68.7 Billion Colors)
4096
-
3840 x 2160 (UHD)
-
2048 x 1600 (2K)
-
1920 x 1080 (HD)
-
1280 x 1024
1,069 FPS
1280 x 720
1,519 FPS
800 x 600
2,871 FPS
320 x 240
16,682 FPS
1280 x 96
11,784 FPS
320 x 96
40,413 FPS
128 x 32
-
CHRONOS 2.1-HD
Bit Depth
8-bit (16.7 Million Colors)
4096
-
3840 x 2160 (UHD)
-
2048 x 1600 (2K)
2,065 FPS
1920 x 1080 (HD)
1,000 FPS
1280 x 1024
1,512 FPS
1280 x 720
2,142 FPS
800 x 600
4,352 FPS
320 x 240
-
1280 x 96
14,825 FPS
320 x 96
-
128 x 32
-
CHRONOS 4K12 New
Bit Depth
8-bit (16.7 Million Colors)
10-bit (1.07 Billion Colors)
12-bit (68.7 Billion Colors)
4096 x 2160 (4K)
1,397 FPS
1,006 FPS
481 FPS
3840 x 2160 (UHD)
1,491 FPS
1,006 FPS
481 FPS
2048 x 1600 (2K)
2,065 FPS
1,082 FPS
518 FPS
1920 x 1080 (HD)
3,651 FPS
1,947 FPS
942 FPS
1280 x 1024
3,856 FPS
2,060 FPS
998 FPS
1280 x 720
5,153 FPS
2,793 FPS
1,366 FPS
800 x 600
6,059 FPS
3,316 FPS
1,633 FPS
320 x 240
11,729 FPS
6,847 FPS
3,533 FPS
1280 x 96
20,413 FPS
13,268 FPS
7,495 FPS
320 x 96
20,413 FPS
13,268 FPS
7,495 FPS
128 x 32
29,002 FPS
21,231 FPS
13,590 FPS
CHRONOS Q12
Bit Depth
8-bit (16.7 Million Colors)
12-bit (68.7 Billion Colors)
4096 x 2160 (4K)
-
-
3840 x 2160 (UHD)
-
-
2048 x 1600 (2K)
2,782
975 FPS
1920 x 1080 (HD)
4,936 FPS
1,731 FPS
1280 x 1024
6,534 FPS
1,829 FPS
1280 x 720
8,840 FPS
2,453 FPS
800 x 600
9,697 FPS
2,891 FPS
320 x 240
16,425 FPS
5,682 FPS
1280 x 96
23,992 FPS
10,123 FPS
320 x 96
23,992 FPS
10,123 FPS
128 x 32
29,411 FPS
14,727 FPS
All-in-one
Standalone
5" touchscreen
