Kron Technologies Inc.

Home of the Chronos camera

The Chronos 2.1-HD and 1.4 are purpose-designed, professional high-speed cameras in the palm of your hand

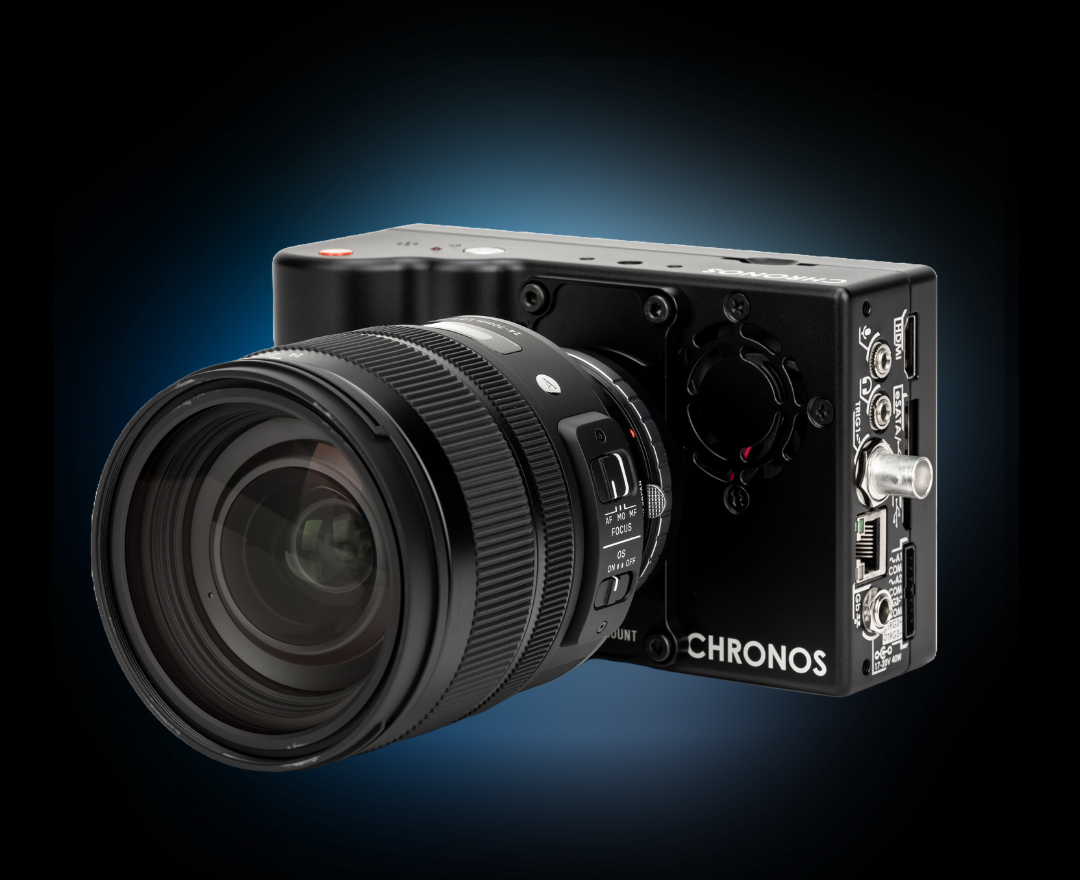

New model: Chronos 2.1-HD

1080p resolution at 1,000 fps

4/3" LUX2100 sensor

Up to 100,000 fps at 1920x8 resolution

2.1 gigapixel-per-second throughput

Completely standalone

Constant pixel throughput

CS/C, Nikon F, Canon EF mounts

Sunlight readable LCD

3 times brighter than Chronos 1.4 at 1,000 nits

Available in color and monochrome

8GB, 16GB, and 32GB RAM memory models

Regular free software updates

Chronos 1.4 - Features

1.4 gigapixel-per-second throughput

Capture stunning high-speed video at up to 1280x1024 resolution.

Completely standalone

Chronos is completely standalone, it can be used like any normal camera

Chronos is cost effective

High-speed imaging should be for everyone

Constant pixel throughput

The pixel throughput remains nearly constant with changing resolution

Available in color and monochrome

8GB, 16GB, and 32GB RAM memory models

Regular free software updates

Ethernet control and transfer is currently being implemented

Chronos Ring

360 motion capture at ultra-high speed

Available in different configurations

3m diameter (max 48 cameras taking 100,000 fps), 6m diameter (max 96 cameras taking 2,000,000 fps), Customized design to your needs (size, shape, type...)

Synchronized, orbiting, staggered and custom recording modes

Video alignment & post processing with DaVinci Resolve and our interface

Personalized support for your project

Available for rent (at our facility or your location) and purchase

Our Chronos Cameras Comes Fully Loaded

1.4 and 2.1 gigapixel-per-second throughputs

Chronos 1.4 are 2.1-HD are purpose-designed, professional high-speed cameras in the palm of your hand. With 1.4 and 2.1 respective gigapixel-per-second throughputs, you can capture stunning high-speed video at up to 1280x1024 resolution with the Chronos 1.4 and up to 1080p (1920x1080) resolution with the Chronos 2.1-HD. Frame rate ranges from 1,057fps at full resolution, up to 38,565fps at minimum resolution with the Chronos 1.4 whereas the Chronos 2.1-HD offers up 1,000fps at full resolution and 100,000fps at minimum resolution.

Constant pixel throughput

The pixel throughput remains nearly constant with changing resolution, allowing you to trade resolution for speed. Frame rate is resolution too - temporal resolution, and Chronos lets you choose the best of spatial or temporal resolution for your shot.

Available in color and monochrome

Available in color and monochrome, and in 8GB, 16GB, and 32GB models for 4, 8 and 16 second record time respectively.

Chronos is completely standalone

Chronos is completely standalone, it can be used like any normal camera - pull it out of your bag anywhere and start shooting. It can also be used tethered via Ethernet for remote control (upcoming software release) and video download in test labs. You can record hundreds of shots - hours worth of shooting - to a single card.

Chronos is cost effective

We started on the journey that lead to Chronos because we believe high-speed imaging should be for everyone, not just scientific research labs and TV productions with massive budgets. Our passion has resulted in a camera that’s disrupting the high-speed video industry. Cameras with similar features currently sell for around $25k. Chronos is about 1/10th the price, with more features, smaller size, and far better usability. You can buy a Chronos for less than the cost of renting a typical high-speed camera for a week or two!

Regular free software updates

HDMI technology is now available. Ethernet control and transfer is currently being implemented and will be available soon. It will be added in a future free software update.

Chronos Camera - Demos

Chronos Ring Demo - 6m diameter - 96 Chronos 1.4 cameras

Chronos 2.1-HD Demo

Chronos Ring Demo - 3m diameter - 48 Chronos 1.4 cameras

Chronos 1.4 Demo

Camera Specifications

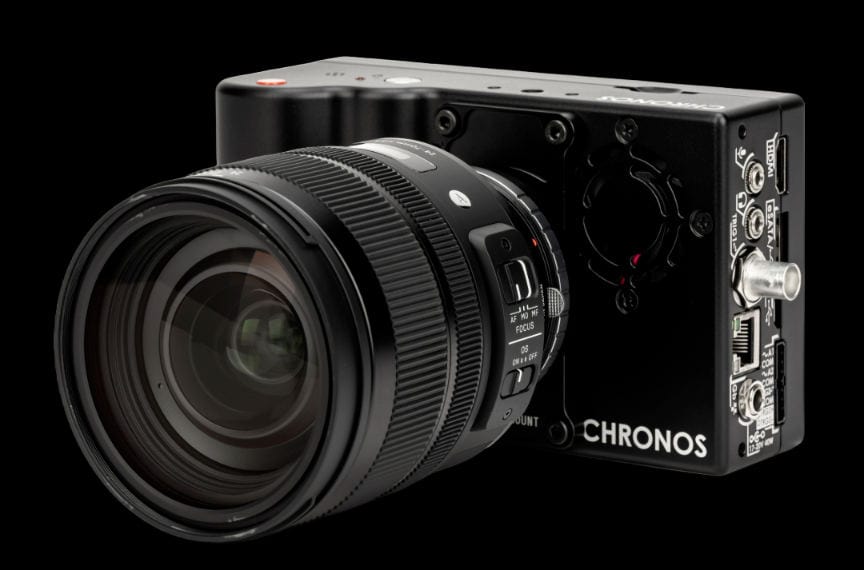

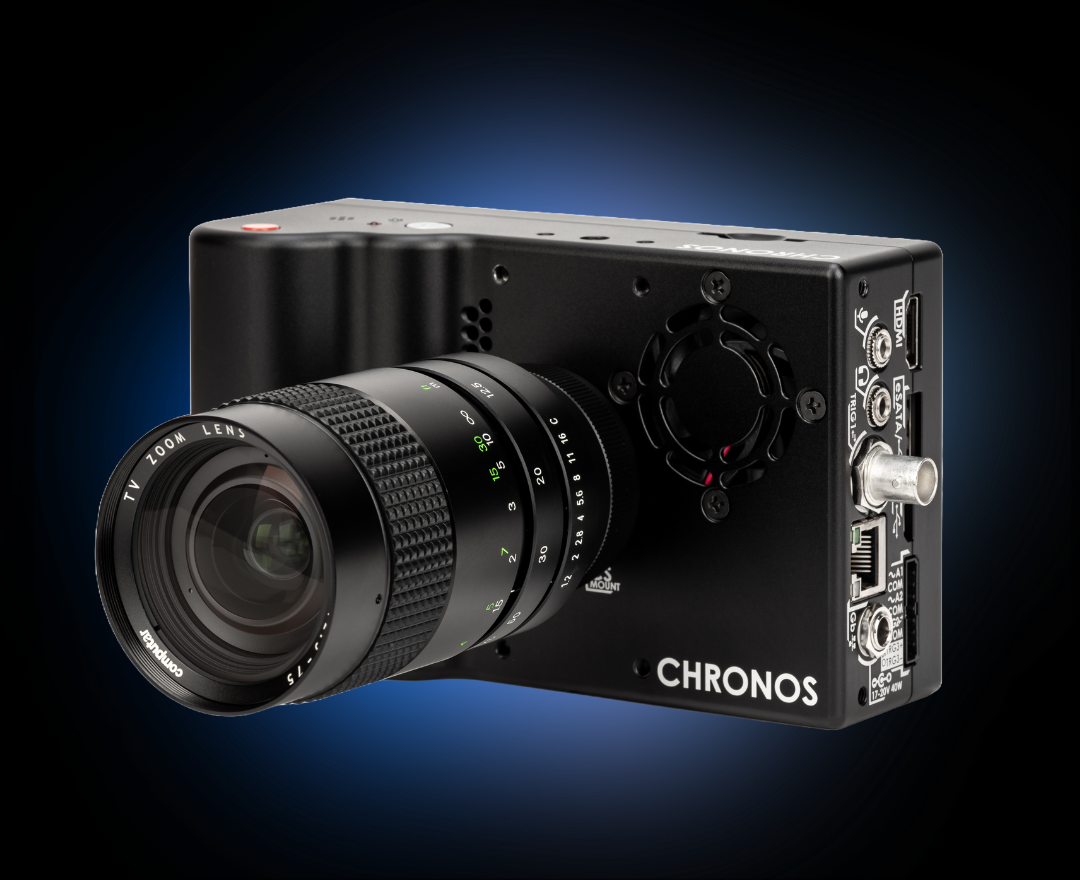

Chronos 2.1-HD

1920x1080 1000fps CMOS image sensor with 2.1Gpx/s throughput

Sensor: ISO 800 (Color), 1600 (Monochrome)

Global shutter LUX2100 image sensor - 19.2 x 10.8mm, 10um pixel pitch

Electronic shutter from 1/fps down to 10us (1/100,000 s)

CS, C, Nikon F and Canon EF mount lens support

Focus peaking (focus assist) and zebra exposure indicator

Machined billet aluminum case

Body color: Black

12.7cm (5") capacitive touchscreen, 1000 nit daylight visible

Record time: 2.75s (8GB), 5.51s (16GB), or 11.03s (32GB)

1-year warranty included (can be extended to 4 years)

Continuous operation on AC adapter

1h runtime on field-swappable EN-EL4a battery

Gigabit Ethernet - remote control and video download*

Audio IO and internal microphone*

HDMI video output

Two channel 1Msa/s waveform capture*

Storage: SD card, two USB host ports (flash drives/hard drives), eSATA 3G

Trigger: TTL, switch closure, image change, sound, accelerometer

Low-noise variable-speed fan

Dimensions: 155 x 96 x 67.3cm (6.11" x 3.78" x 2.65")

Weight: 1.06kg (2.34lb)

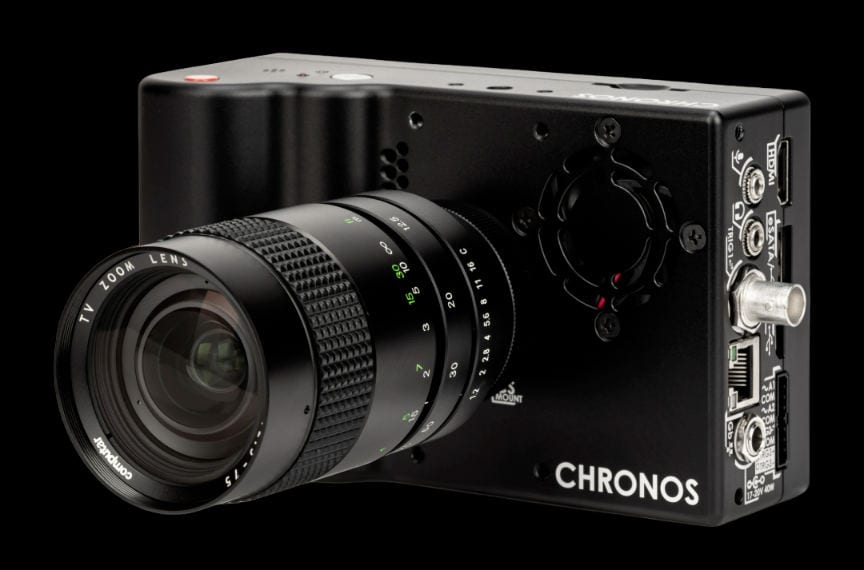

Chronos 1.4

1280x1024 1057fps CMOS image sensor with 1.4Gpx/s throughput

Sensor: ISO 320-5120 (Color), 740-11840 (Monochrome)

Global shutter LUX1310 image sensor - 8.45 x 6.76mm, 6.6um pixel pitch

Electronic shutter from 1/fps down to 2us (1/500,000 s)

CS and C mount lens support

Focus peaking (focus assist) and zebra exposure indicator

Machined billet aluminum case

Body color: Black

12.7cm (5") capacitive touchscreen, 300 nit

Record time: 4.13s (8GB), 8.26s (16GB), or 16.52s (32GB)

1-year warranty included (can be extended to 4 years)

Continuous operation on AC adapter

1.5h runtime on field-swappable EN-EL4a battery

Gigabit Ethernet - remote control and video download*

Audio IO and internal microphone*

HDMI video output

Two channel 1Msa/s waveform capture*

Storage: SD card, two USB host ports (flash drives/hard drives), eSATA 3G

Trigger: TTL, switch closure, image change, sound, accelerometer

Low-noise variable-speed fan

Dimensions: 155 x 96 x 67.3cm (6.11" x 3.78" x 2.65")

Weight: 1.06kg (2.34lb)

* To be released with a free software update

Latest News

We are hiring – 2 open positions

As Kron Technologies Inc. is growing fast, we are currently searching for a Software Engineer & Electronics Technologist to join our team. For more details, please visit our Career section.
Read More

NAB Show 2019 – Stay tuned

Our team is thrilled to participate at NAB Show 2019 as an exhibitor and comes with exhilarating announcements on the agenda!
Read More

Upcoming features on Chronos 1.4 camera

Being involved in many exciting projects, an API release is scheduled soon!The main features will be: API that allows remote control of the camera from a PC, via Ethernet and USB, Image quality improvements relating to vertical banding in dark image areas ...
Read More

ABOUT US

Kron Technologies Inc is a Canadian high-speed imaging system design and manufacturing company, located in Vancouver area.

OUR VISION

Make high-speed imaging accessible to everyone.

OUR MISSION

Provide state-of-the-art products for an excellent user experience, at a fair price, with the best possible quality and customer service.
