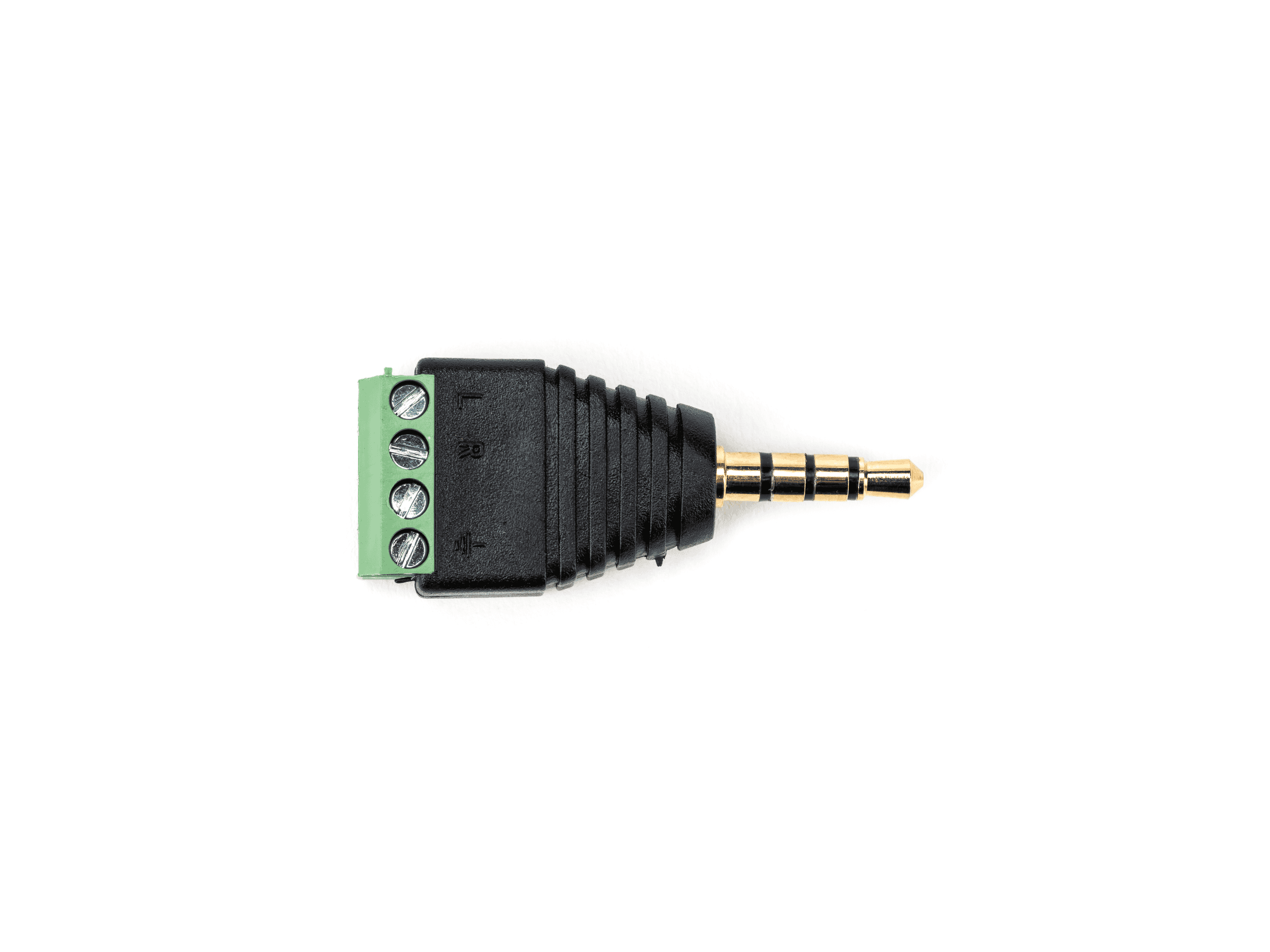

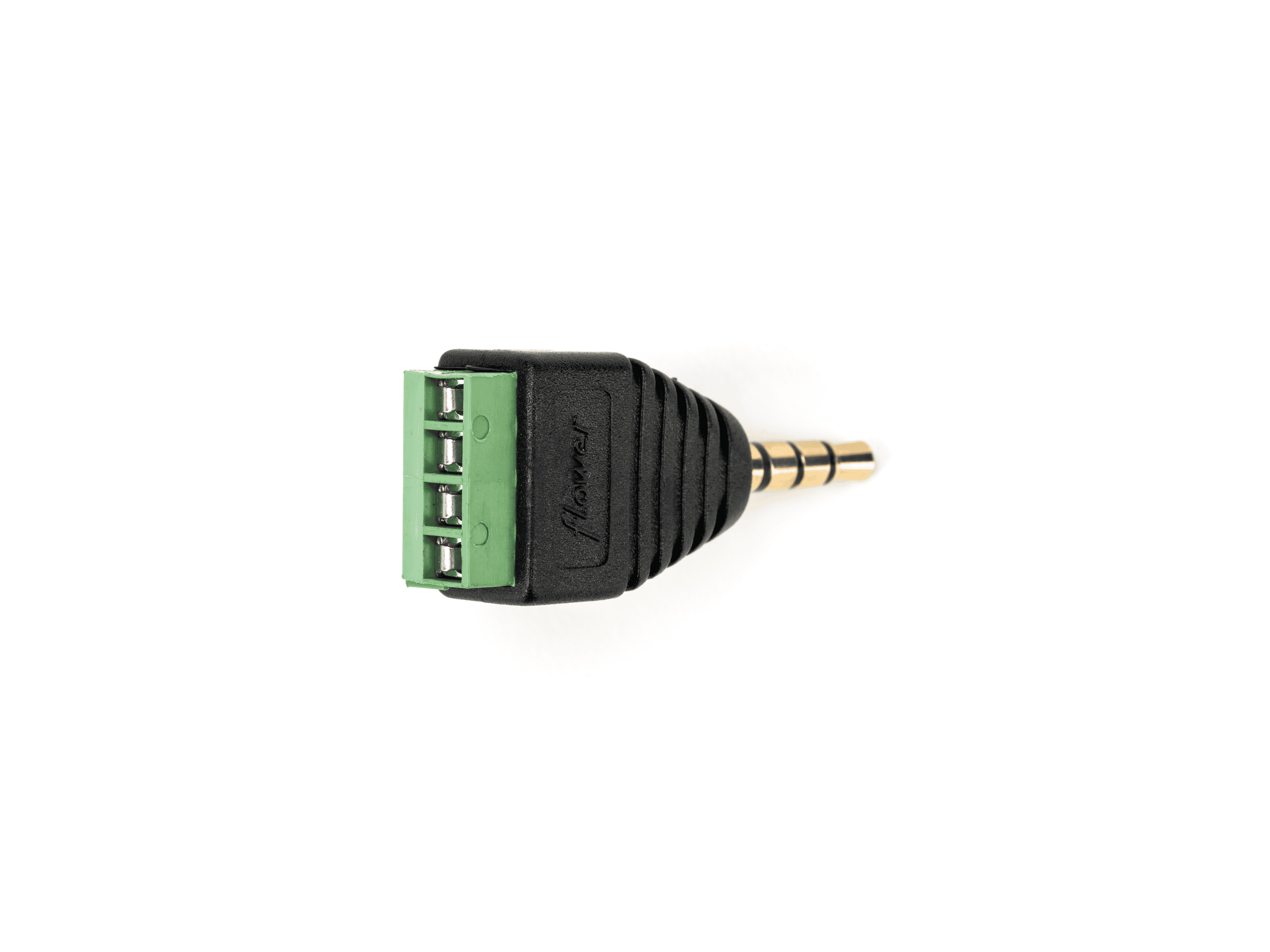

3.5mm to 4-Pin Terminal Block
The 3.5mm TRS to 4-Pin Terminal Block is a specialized adapter designed exclusively for the Chronos 4K12 High-Speed Camera, providing a flexible and secure way to integrate custom wiring and external signal control into your workflow.
This adapter allows users to connect individual wires or bare leads directly to the camera’s 3.5mm TRS input, enabling precise integration with laboratory equipment, industrial control systems, or custom trigger setups. The 4-pin terminal block format makes it easy to wire connections without soldering or proprietary cables.
Key Features:
- Purpose-Built for Chronos 4K12: Ensures reliable and secure signal connections specific to the 4K12 platform
- 4-Pin Terminal Block Interface: Allows direct connection of custom triggers, sensors, or control systems
- Easy Integration: No soldering required—simply screw in your signal leads
- Durable and Compact: Built for use in labs, studios, and industrial environments
| 3.5mm TRS to 4-Pin Terminal Block - Specifications | |
|---|---|
| Connector 1 | 3.5mm TRS |
| Connector 2 | 4-Pin |
| Length | 1.57” / 40mm |
| Item Weight | 6.5g |
| Shipping Weight | 0.2Kg |
| Shipping Dimensions | Flyer/ Small Box (15x10x10) |
| Compatibility | Chronos 4K12 |
| Included | 1X 3.5mm TRS to 4-Pin Terminal Block |
| Warranty | 90-Day |
